July 2014

Arc Flash Test: DEET Sprayed Clothing

Arc Flash Test:DEET Sprayed Clothing

Many utility workers find themselves in need of protection from insects during the summer months. It is important to be aware of the best choice for the use of bug repellent.

But because many of the common sprays can ignite, good information is important.
There are two main options for use in the battle against bothersome pests: permethrin and deet. Permethrin is meant to be used on clothing, while deet is protective on the skin.

Find out more about the differences in these
two options in insect protection on the job.
Job Opening: Electrical Safety & Arc Flash Consultant
Training Photo-Bill Summary: e-Hazard is currently seeking an electrical safety consultant to join our team of experts. The primary objective of this position is to provide on-site electrical safety analysis, collection of arc flash study data and hands-on interaction at facility assessments. The right candidate with strong detail orientation and broad technical knowledge may be involved in arc flash testing. Must be willing to travel.
See responsibilities and qualifications.


Send resume’ with salary requirement to

Q&A with e-Hazard/ArcWear: Balaclava as arc flash hood

Burning Question

Q. With the new head protection requirement according to the changes in OSHA standard 1910.269 and 1926.960, I am curious to know what qualifies as adequate protection in an arc hazard situation. Would a balaclava/goggle be considered adequate protection as an arc flash hood?


A. The NEW OSHA standard allows balaclava/goggles, balaclava faceshield and stand alone faceshields up to a limit and common bee-keeper style arc flash hoods but the NEW OSHA standard doesn’t really define them. Because it lists the ASTM F2178 standard, it is clear they are all allowed.

It is likely that a faceshield/balaclava (called a hood in the OSHA standard) would be OK up to about 20 cal if properly designed and rated (NFPA 70E cuts them off at 12 cal but this is based on data without use of safety glasses under the shield) but at some point you should move to a more thorough protection like a balaclava/goggle (if you have low risk of shrapnel) or a bee-keeper’s style hood if there is more risk of shrapnel to the face.  Most of the shrapnel we have seen in arc flashes has been porcelain from insulators and switch gear.  Often trainers refer to molten metal particles at 700 MPH as “shrapnel”, these materials will not go through a cloth and enter the body so a faceshield is not the issue.  We have no deaths related to arc flash “shrapnel” on record so focus on protection and comfort.
By the NFPA 70E definition, a balaclava is part of an arc flash suit or flash suit hood because it helps provide 360 protection. If you use the tables, you must use a bee-keeper’s style hood with a face piece but if you have done calculations, you may use a balaclava/goggle or balaclava/faceshield to higher levels than allowed by the tables (see Annex H.3).


Two pros of using a balaclava/goggle as an arc flash hood:

  1. Allows overhead protection from shock since there is no fabric on hardhat         (overhead lines would require this).
  2.  Allows better face protection since energy cannot get under the hood.
Two cons of using a balaclava/goggle as an arc flash hood:
  1. Only eye, no face protection from potential flying parts (other than molten metal). This is up to the assessor to determine.
  2. Fogging with the goggle right on the face.

Hugh Hoagland

 Got a question?

The only bad question is the one you didn’t ask

until after the accident!

Contact us for more information.
Brought to you by…
Upcoming Classes

High Voltage Qualified


7/22 – 7/23/14
Atlanta – College Park, GA7/29 – 7/30/14
8/12 – 8/13/14
8/19 – 8/20/14
9/29 – 9/30/14

Training Courses graphic

For more information on all the classes offered by e-Hazard, visit our website at or via email at

Training and Testing Needs



This training
program is designed to prepare qualified trainers to deliver instruction based on NFPA 70E and OSHA requirements.

“Outstanding trainer. Well done.”

HV Class Attendee, 2014

Upcoming Classes

9/29 – 10/2/14
12/1 – 12/4/14

Logo: ArcWear

Arc Flash Testing for Protective Apparel

Testing Dates

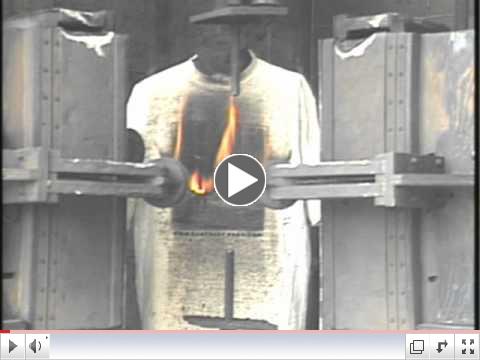

Hemp t-shirt in arc flash
Hemp t-shirt in arc flash


July 28 – August 1

August 18-22

September 22 – 26


ArcWear now provides ISO 17025 A2LA accredited testing for ASTM F1506 and F1891 along with our other arc flash standards.
NEW CLASS: Limited Offering to TTT Alumni
e-Hazard is offering a special training just for graduates of e-Hazard’s Train-the-Trainer program in light of the changes to OSHA 1910.269 and the scheduled changes to 2015 NFPA 70E Standard in the fall.
There are two options for this training for TTT alum:
Option 1: Updates only (8 hours)
                November 5, 2014
                January 26, 2015
Option 2: Updates and compliance strategies seminar (12 hours)
                                             November 5-6, 2014
Registration must be complete 10 days in advance of course.

NEW CLASS: Tables and Tools for Arc Flash Hazard Assessment
e-Hazard is excited to announce our new class –

The class will focus on using NESC tables and the NEW OSHA arc flash tables in arc flash assessment. Marcia Eblen, P.E., a key researcher behind the NESC tables and the NEW OSHA 1910.269 arc flash tables, will facilitate the class.  There will also be class discussion on the use of ArcPro software and IEEE 1584 for calculating arc flash for utilities. Call us today at (502) 716-7073  and register.

Upcoming Classes
July 15, 2014

More information…

Brought to you by…
What is arc flash testing?
photo-arc-explossion What exactly is arc flash testing and why do I need it? It’s a reasonable question. If you don’t know what it is, how can you know if you need it or not.
Arc flash testing is used to determine the arc rating for materials and equipment intended for use in electrically hazardous environments. The process of arc flash testing determines the heat transfer response through a material, fabric, or fabric system when exposed to the thermal energy from an electric arc. Arc flash testing allows safer choices of PPE for your hazard and minimizing injury.

Find out more about arc flash testing…
Arc Flash Testing 101

Read our Electrical and Arc Flash Safety BLOG

  • Chapter on arc flash from Handbook of Fire Resistant Textiles available for purchase06-24-2014
  • Man electrocuted while attempting to save son – 06-21-2014
  • Electric shock accident kills mechanic – 06-20-2014
  • STANDARD UPDATE: F1959/F1959M – Standard Test Method for Determining the Arc Rating of Materials for Clothing – 06-19-2014
  • Two workers from Covington, GA injured in arc flash accident – 06-19-2014
  • Contractor rushed to hospital after electrical explosion-06-19-2014
  • Job Opening: Electrical Safety & Arc Flash Consultant – 06-12-2014
  • 2 workers dead after bucket truck accident on Cape Cod – 06-10-2014


See why over 16,000 people read our BLOG every week

To stay up to date on the latest electrical safety news,
go to the e-Hazard BLOG



Brought to you by…

Upcoming Events: Hugh Hoagland from e-Hazard speaking

2014 National Safety Council (NSC) Congress & Expo
San Diego, CA
September 13 -19, 2014

2014 NSC Congress & Expo - Putting the Pieces Together
2014 NSC Congress & Expo – Putting the Pieces Together

Hugh Hoagland will speak on the recent updates to OSHA 1910.269 and other electrical standards in 2014.

 Registration Open NOW


Health at Work 2014
“Electricity and safety in the 21st century”

Frankfurt, Germany

August 24-27, 2014

World Congress 2014 - your participation counts!
World Congress 2014 – your participation counts!

Hugh Hoagland of e-Hazard and ArcWear will speak on arc flash at the conference.

New Team Members: Evan Twyman and Mitch Wettle

Evan Twyman is the newest member of the e-Hazard creative team. Ever since he was able to hold a pencil, he has been drawing and doodling. Graphic design has been a long time passion of his and now he’s able to provide his talents to e-Hazard. His primary duties are illustration and graphic design.


Mitch Wettle

is an electrical engineering student holding down many jobs as he puts himself through school. As an intern, he not only does anything asked of him around the office, (fabric preparation, database management, etc.) he’s an amazing cook. He works overnight at UPS.
Join us on Facebook

Pool Party!

We’d love to have you
join us
on Facebook.

It’s a great way to stay
connected to the latest electrical
safety news through social media and
you can check out our

What Not To Do photo series!
Come on and join us!
Like us on Facebook


Brought to you by…
Our Sponsors

 AJ Charnaud Protective Clothing South Africa


 INVISTA Ashburn Hill Corporation


 Benchmark Clothing


 Berne Apparel Company




Cementex -Safety Tool Specialists


    Chicken Switch







 Milliken FR


NASCO Rainwear


National Safety Apparel


Neese Industries Rainwear




Paulson Manufacturing


PGI Inc.

PyroSafe by Antex




Riverside Protective Apparel


Salisbury by Honeywell


 Steelgrip Arc-Rated Gear


 Tyndale Arc Rated Clothing




Join Our Mailing List!

Like us on FacebookFollow us on TwitterView our profile on LinkedInView our videos on YouTubeVisit our blogView our photos on flickr

ArcNews provides a quick update on arc rated and flame resistant clothing issues and news from OSHA and standards committees. The FREE e-newsletter reaches over 16,000 people, with contributions from expert trainers from e-Hazard with up-to-date news related to electrical safety training. For previous newsletters or to sign up, visit or
Just a reminder that you’re receiving this email because you have expressed an interest in and Don’t forget to add to your address book so we’ll be sure to land in your inbox!

You may unsubscribe if you no longer wish to receive our emails.


Hugh Hoagland
13113 Eastpoint Park Blvd., Suite G
Louisville, KY 40223
Office: 502-716-7073

Forward this email

This email was sent to by | and | 13113 Eastpoint Park Blvd. | STE E | Louisville | KY | 40223

Hugh Hoagland
About author:
Hugh Hoagland is the foremost tester of clothing and PPE exposed to electrical arcs and is an arc flash expert. Read more about Hugh.
