photo-materialsFall is a great time to get things on the schedule that you didn’t get to over the summer. Maybe a refresher course or a new training video? Our 7 Electrical Safety Habits and NFPA 70E Training videos are now available for 2012 NFPA 70E.

Check out our upcoming classes and sign up today. Also, it’s always a good idea to stay current on the most recent standard updates. Take a look at our article on the changes to the glove standard as well as our video on anti-fog face shields.

There is no time like the present to get caught up! Let us know how we can help.

Burn Up The Myth: Q&A with e-Hazard/ArcWear

Burning Question

Q:  I have a question related to ASTM F2178.  I heard some complaints from electricians that 8 cal face shields are amber-tinted and much easier to see through than 40 cal hoods.  Their argument is that the UV is the same regardless of energy and the 40 cal lens should be as easy to see through as the 8.  I am not familiar with, nor do I have access to F2178, but do you have any thoughts on why the higher calorie lens would be darker and more difficult to see through?



A: The UV blockers are not what make the shield darker, and UV is not what burns you the most in an arc flash. The blocking of infrared (IR) and visible light is what creates the darkening. The arc visible light, which is intense and can cause burns, consists of very little UV but mainly IR and visible light. This is why more blocking of these types of light necessitates a darker shield. The same is true in welding: Cutting torch lenses are pretty dark, but welding lenses are almost black because more blocking is needed.  We worked with all the manufacturers to tweak these shields over the years to block enough to prevent second-degree burn but still allow visibility.



ASTM F2178 doesn’t speak about how or what to block-it just relates to testing in a real arc flash situation.  Newer shields have gotten clearer and clearer, but some of the hood manufacturers have not kept up with the latest shield advancements and so use old technology.  Try several brands-you will be surprised by the differences.  The largest face shield manufacturer, Paulson, has about three generations of shields that it manufactures to accommodate the companies which don’t want to retest or move to a newer shield technology.  Do a wear trial.  It makes a difference.  And don’t forget to get a fan in hoods-that makes workers a lot happier too!





Hugh Hoagland



For more information see our related articles:

Got a question?

The only bad question is the one you didn’t ask

until after the accident!

Contact us for more information.
Brought to you by…
Ad- Benchmark
Advertiser: Youngstown
advertise
Read our Electrical and Arc Flash Safety BLOG
  • Gloves, Arc Flash, and the New ASTM Test Method08-26-2013 10:23:34 AM
  • Plattsburgh, NY, manufacturer receives $69,244 in fines from OSHA08-26-2013 10:21:33 AM
  • Republic Steel is facing more than $1.1 million in federal fines08-22-2013 18:32:46 PM
  • Benchmark Second Skin Sale08-21-2013 20:12:07 PM
  • OSHA Rules change for Federal and Volunteer Injuries08-20-2013 16:10:41 PM
  • Safety perimeter failed to protect implosion spectators08-19-2013 20:15:33 PM
  • FR WorkWear For Her: “Comfortable yet stylish clothing designed by women for women”08-19-2013 20:14:58 PM
  • KFC Employee receives electric shock at work resulting in a £12,000 fine08-16-2013 15:57:22 PM
  • Recovery after high-voltage electric shock08-14-2013 12:00:14 PM
  • Increased occurrence of rotator cuff injuries among electrical workers08-13-2013 11:56:16 AM

See why over 10,000 people read our BLOG every week

To stay up to date on the latest electrical safety news,
go to the e-Hazard BLOG

Visit our blog

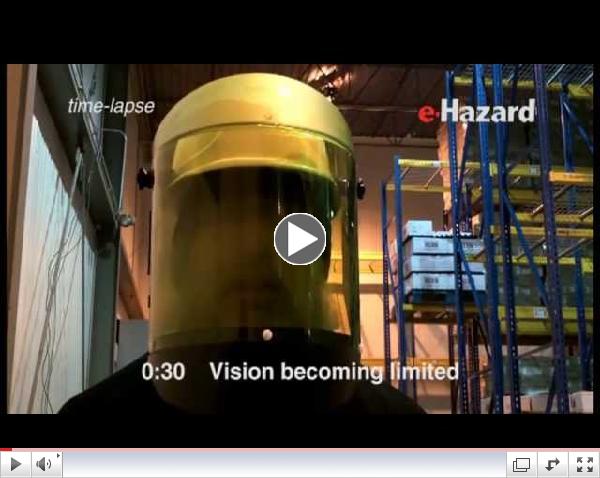

VIDEO: Anti-Fog Face Shield Testing
Anti-Fog Face Shield Testing
Anti-Fog Face Shield Testing

Hugh Hoagland and his team from e-Hazard went to Louisville Processing and Cold Storage to conduct a series of experiments on anti-fogging technologies in face shields. The experiments were conducted in the facility’s Cold Room, a controlled environment of -13 degrees F (-25 C). The experiments were a simulation of workers using Personal Protective Equipment for arc flash protection in an extreme cold work environment.



Brought to you by…
Advertising: PGI

Gloves, Arc Flash, and the New ASTM Test Method

Logo: OHS Read Hugh Hoagland’s article  on the  New ASTM Glove Test Method from the August issue ofOccupational Health & Safety.





Excerpt:

For years, we have heard the question, “What about gloves in arc flash?” The reason this question wasn’t answered sooner is complicated, but the standard is now available. ASTM F2675-13, Test Method For Determining Arc Ratings of Hand Protective Products Developed and Used for Electrical Arc Flash Protection, is an ASTM International standard with an approval date of June 1, 2013, that was expected to be published by ASTM International within the month of July. Testing is already progressing, with more than 25 types of gloves tested in the past few years now having a specific standard to target.



Read full article on the e-Hazard website

ATPV vs. EBT
The question often arises as to whether an Arc Thermal Performance Value (ATPV) or an photo-arc-explossion-2 Energy Breakopen Threshold (EBT) is better protection in a garment system. When  ASTM F1959 / F1959M – 12 (The Standard Test Method for Determining the Arc Rating of Materials for Clothing) was in development, we quickly recognized that some materials would allow skin burn prediction to be reached before they “broke open” and others would not. Initially these became two ratings. One was called an ATPV and the other was called EBT.



ASTM Standards Definitions:

  • ATPV (Arc Thermal Performance Value) The incident energy on a material that results in a 50% probability that sufficient heat transfer through the specimen is predicted to cause the onset of second-degree burn injury based on the Stoll Curve, cal/cm².
  • Energy Breakopen Threshold (EBT) The incident energy on a material that results in a 50% probability of breakopen. Breakopen is defined as any open area at least 1.6 cm² (0.5 in.²)

Read full article…

Upcoming Classes
Low Voltage QualifiedDetails

Phoenix, AZ 9/10/13
St Louis, MO 9/10/13
Evansville, IN 9/12/13
Denver, CO 9/17/13
Mobile, AL 9/17/13
Louisville, KY 9/23/13
Deerfield, IL 9/24/13
Seattle-Maple Valley, WA 10/8/13
Cincinnati, OH 10/14/13
Knoxville, TN 10/15/13
Greensboro, NC 10/25/13
Billings, MT 10/29/13
10/29/13
Ardmore, OK 11/5/13
Cedar Rapids, IA 11/12/13
11/19/13
Louisville, KY 12/2/13
Biloxi, MS 12/10/13
Train The Trainer – Details

Louisville, KYCLOSED
9/23 – 9/26/13
12/2 – 12/5/13

High Voltage Qualified –
Details
9/17-9/18/13
9/23-9/24/13
10/29-10/30/13
12/2-12/3/13


NESC Safety & Arc Hazard
Awareness –
Details

10/15/13

Arc Flash Hazard Analysis for Utilities (Includes NESC Safety & Arc Hazard Awareness 1/2 Day) –
Details
10/15 – 10/16/13
Training Courses graphic


For more information on all the classes offered by e-Hazard, visit our website at

www.e-hazard.com or via email at

office@e-hazard.com

Brought to you by…
ads: arc store
Training and Testing Needs

Train the Trainer

photo-classroom-3

This 3 or 4 day training program is designed to prepare qualified trainers to deliver instruction to others based on NFPA 70E and OSHA requirements.

What people are saying:

“The instructors are experts in the subject matter and their delivery methods unsurpassed.”

Register

Register Now for our
Upcoming Class

Louisville, KY
12/2 – 12/5/13

Get course details and full schedule.


Logo: ArcWear Arc Flash Testing for Protective Apparel

Beard Net and Hair Net Arc Flash Testing

Beard Net and Hair Net
Arc Flash Testing
ArcWear™ Testing Dates 2013

Sept 16-20

Oct 28-Nov 1

Nov 18-22

Dec 16-20

For complete information on Arc Testing, including testing site location, shipping details and accreditation, visit:www.arcwear.com


Brought to you by…
ads-PowerGripz

Coming Attractions…

NSC2013-CE-Logo.

Hugh Hoagland of e-Hazard will be leading the session,
Arc Flash: Changes to OSHA Standards, NESC and
NFPA 70E

 Full Details…

ICUEE-2013
Demo the latest equipment.
Meet with the experts.
Network with peers.
Put the future in your
hands at ICUEE,
the International
Construction & Utility Equipment Exposition.

Full details…

Event: NIPSCO

NIPSCO Energy Symposium
October 9, 2013
Workshop topics include:
Power Factor, Global Energy
and Sustainability.

Webinar: Update on OSHA Electrical Safety Regulations
Logo: OHS

OSHA is changing the regulations from the 1910.269, 1926, and 1910.300 series affecting utilities, construction, and general industry. This webinar with Hugh Hoagland, will review these changes and their impact on companies in these industries.


REGISTER TODAY!Webinar
DATE: December 4, 2013
TIME: 2:00PM EDT – 1:00PM CDT – 11:00AM PDT

Product Review: PGI Cobra™ Hoods

Cobra Hood

PGI’s Cobra Hoods Announces New High Performance Hood Fabric for Arc and Flame Resistance.

Learn about Para-Tek™ FR, the Tri-Blend that leverages the benefits of three fibers to create a lightweight, breathable hood offering flame and heat resistance at the highest arc rating.

Para-Tek FR is inherently flame resistant and complies with the current edition of NFPA 70-E. Get the details about this long lasting, comfortable hood fabric technology.

Spec Sheet (PDF) | www.cobrahoods.com
