Download Our Comprehensive Arc Flash PPE Chart

Updated to Current NFPA 70E Standards

Wearing the right PPE can be the difference between life and death.

There are two factors that greatly influence someone's survival of an arc flash: age and the percentage of burn area.

While you can’t control your age, you can help control the percentage of body burn. Arc flash suits, which are matched to the hazard, can prevent almost all body burns.

Stay safe by following this NFPA 70E based PPE guide!

ppe guide probability of survival by age

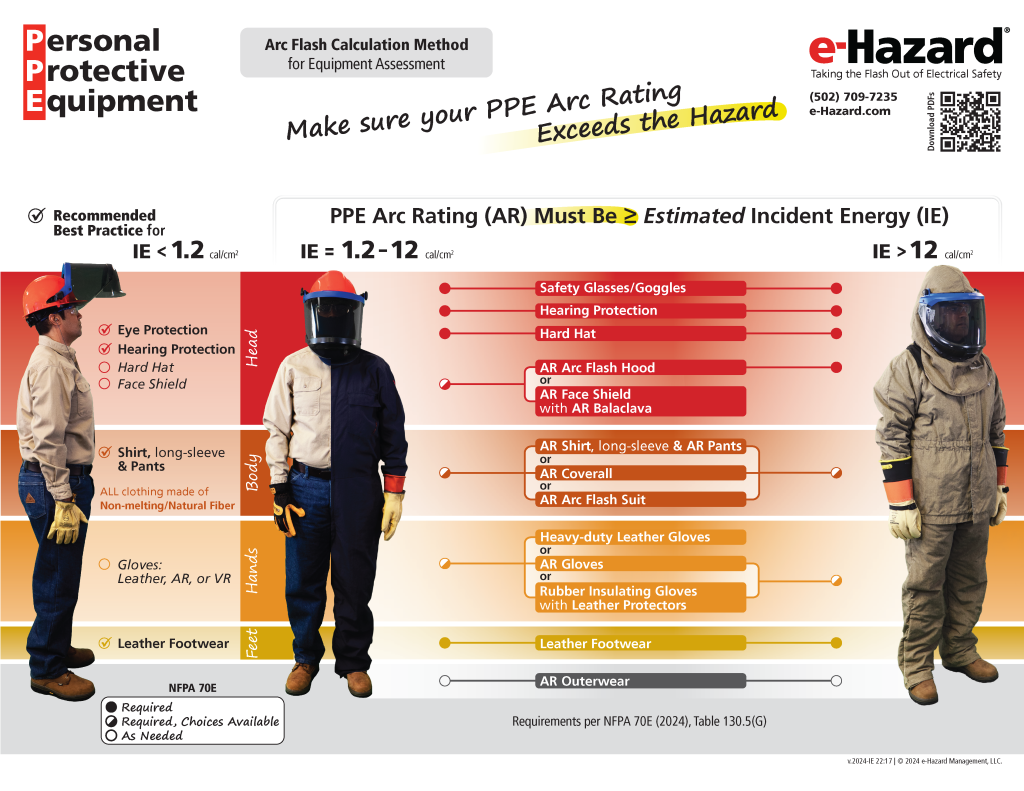

ppe guide preview

Download the Printable PDF

This PPE Guide is Based On:

  • Arc Flash Calculation Method, Requirements per NFPA 70E (2018), Table 130.5(G) / CSA Z462-18, Table 3
  • NFPA 70E / CSA Z462 Table Method, Requirements per NFPA 70E (2018), Table 130.7(C)(15)(c) / CSA Z462-18, Table 6C)
Yes! Download the PDF Yes! Download the PDF.

Want a PPE Guide to display at your workplace?
Buy one directly from our store!
